Model

Actuators brand


Product Description

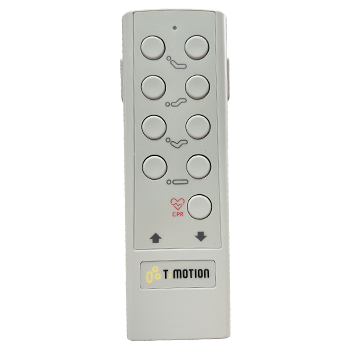

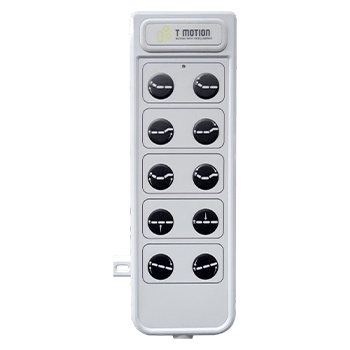

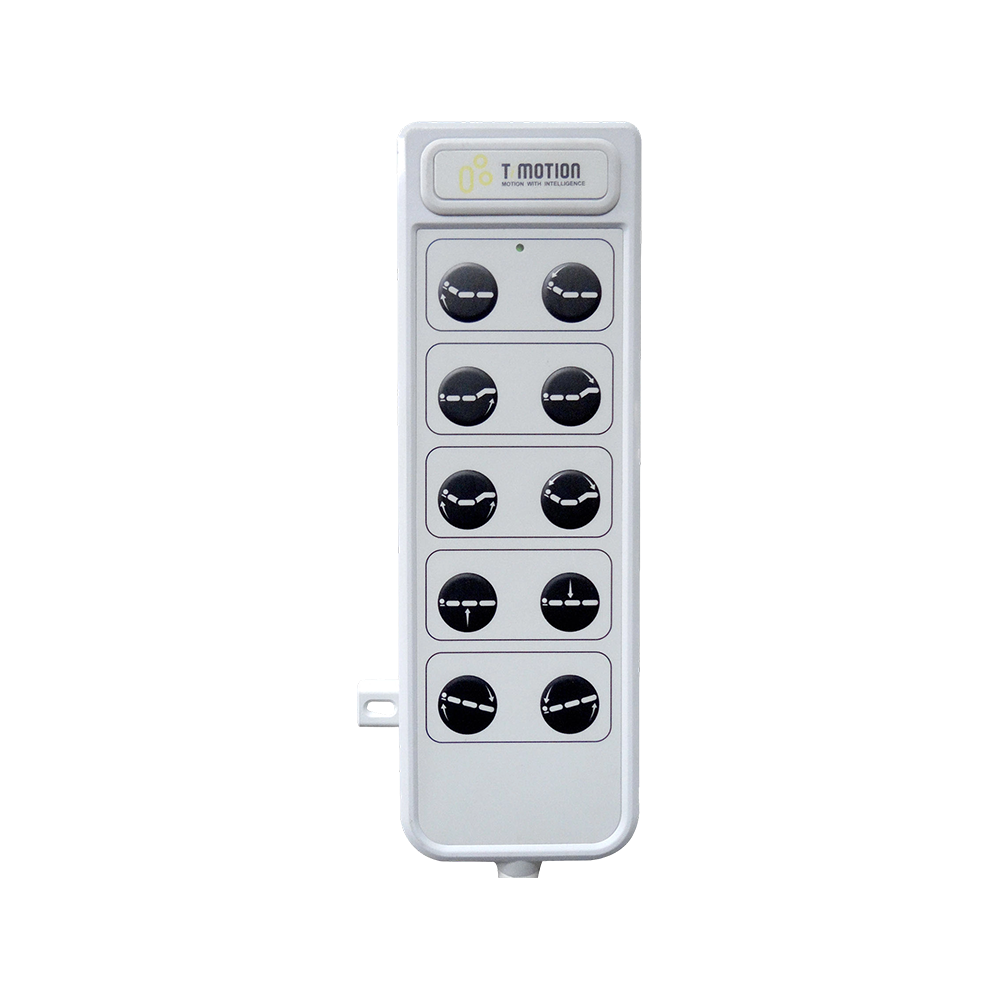

TH2

Timotion

Connectable motors: 1-4

Maximum number of supported keys: 10

Color: Black, Ivory White

Waterproof rating: IP66W

Is there a safety lock available: with support

Working temperature range:+5 ° C~+45 ° C

LED indicator light

Noted: Logo (Customized available)

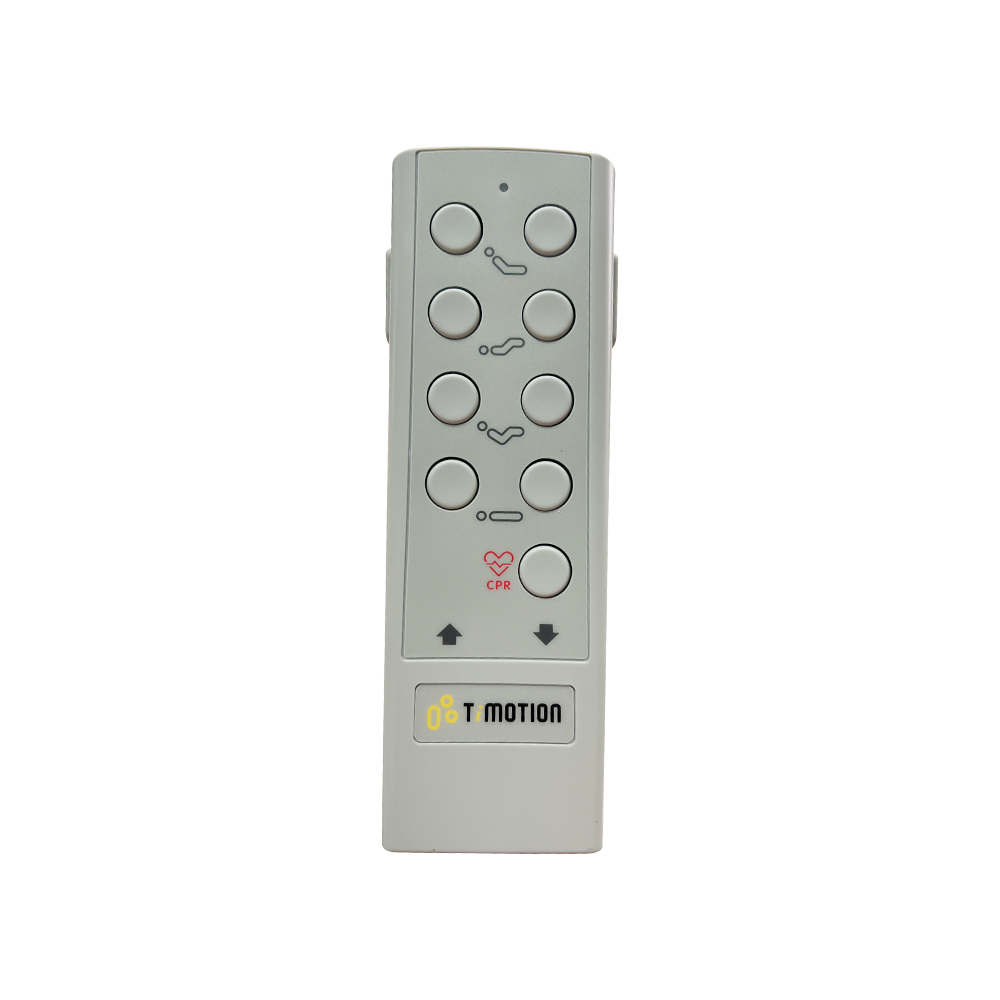

TH6

Timotion

Connectable motors: 1-4

Maximum number of supported keys: 10

Color: Black, Ivory White

Waterproof rating: IP66

Other options: Hooks

Is there a safety lock available: with support

Safety certification: RoHS

Working temperature range:+5 ° C~+45 ° C

LED indicator light

Noted: Logo (Customized available)

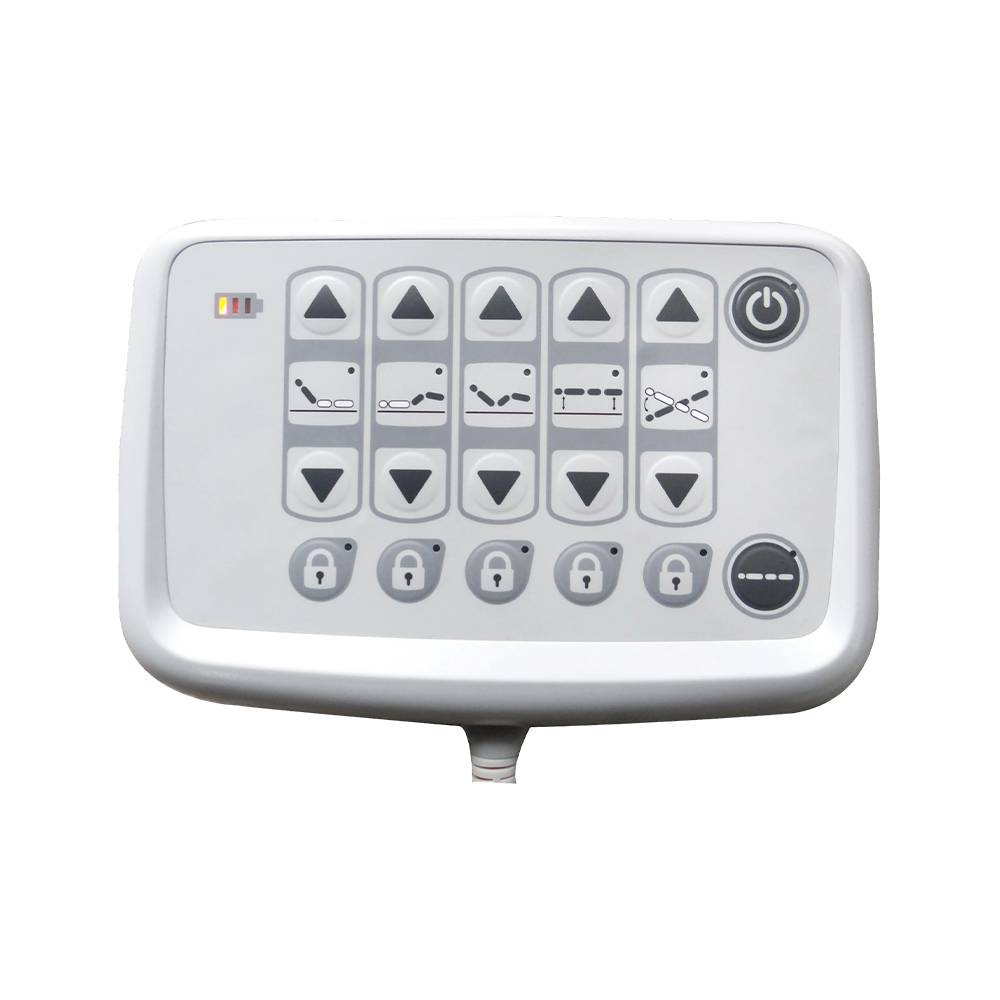

TNP1

Timotion

Connectable motors: 7

Maximum number of supported keys: 27

Color: Black, Ivory White, White

Waterproof rating: IP66

Is there a safety lock available: with support

Working temperature range:+5 ° C~+45 ° C

Can be connected to the TC8 series control box and can control up to 7 push rods

Can be used as a lock box

Can be hung on the bed side panel

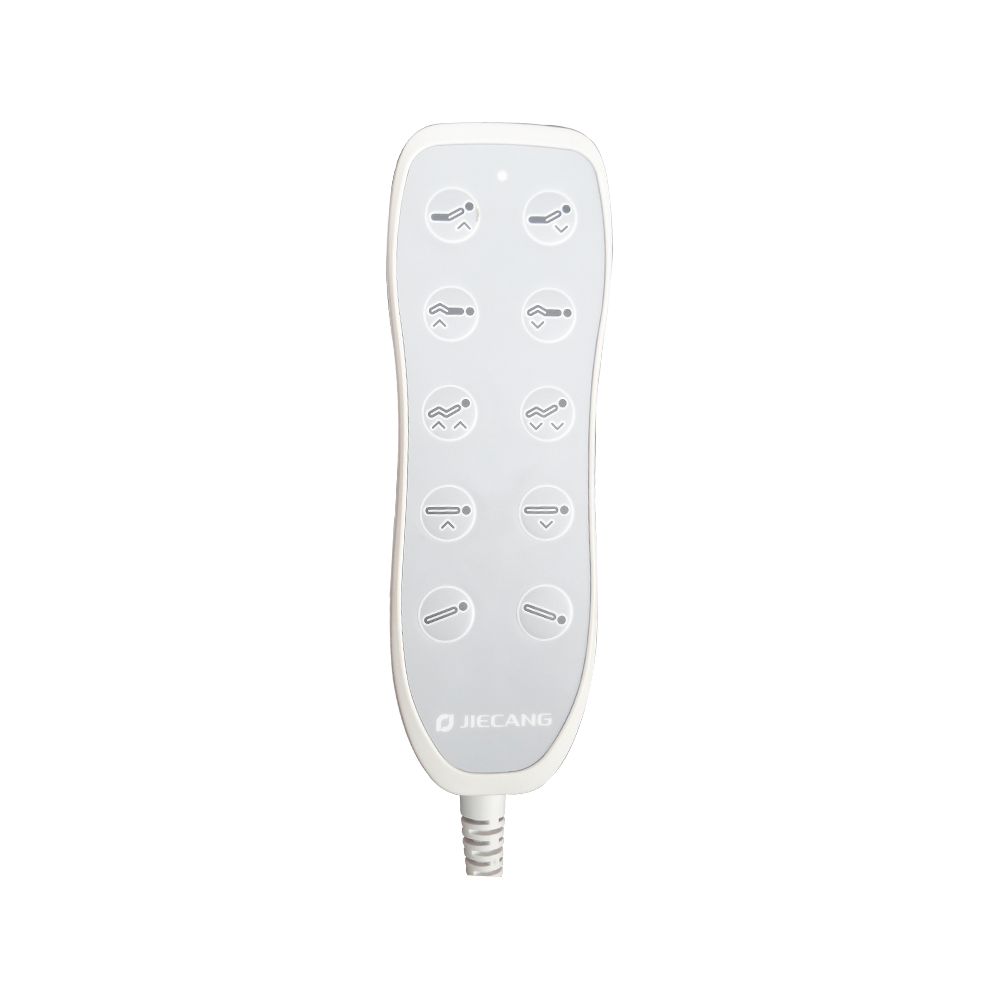

JCH35A4

JIECANG

Waterproof rating:Max. IPX6

Button amount: Max.10 buttons

Key form: touch switch

Drive up to 5 actuators at the same time

Colour: Gray/Black

Control box supporting: all conventional control boxs of Jiecang

Panel color and style can be customized

Noted: Logo (Customized available)

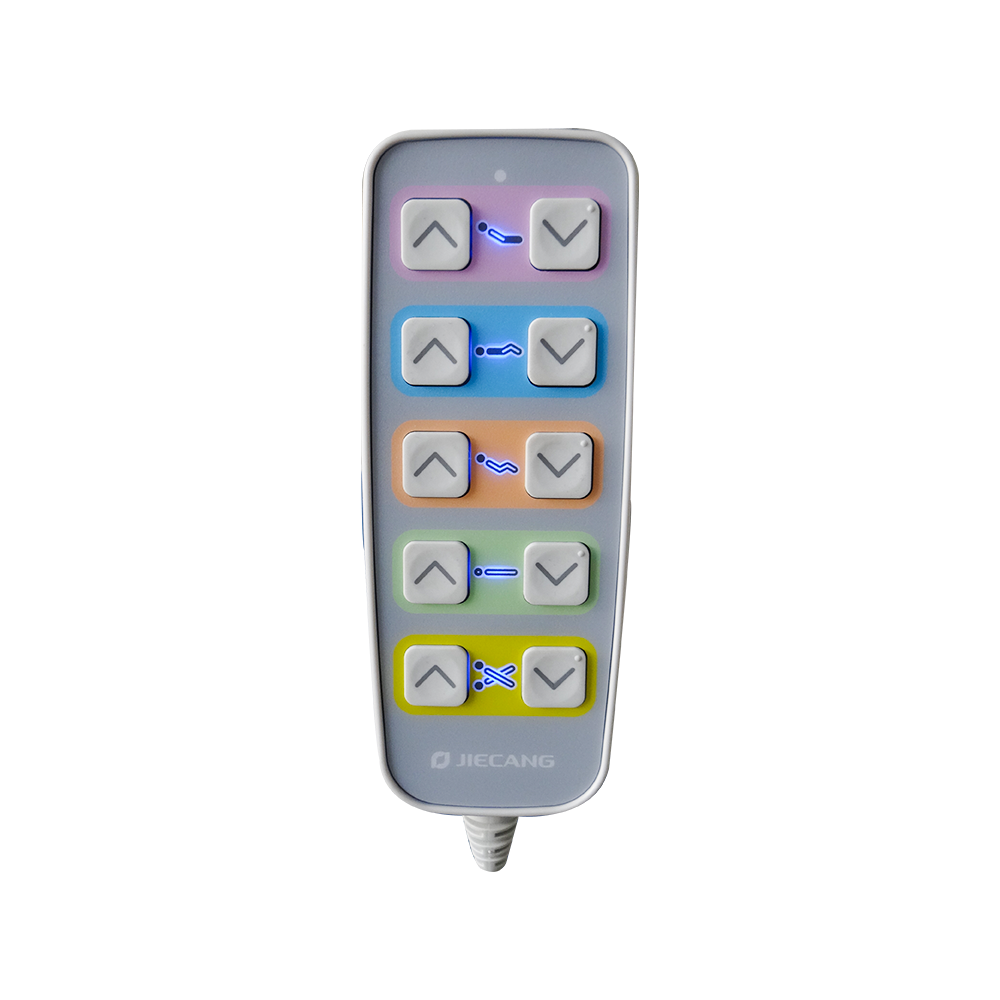

JCH35A18

JIECANG

Number of button: Maximum 10 buttons

Button Type: Silicon + Metal dome

Drive up to 5 actuators simultaneously

Color：Gray

Mechanical lock of 4 block

Handset cable is detachable

Supporting control box：All standard control boxes of JIECANG

Panel and color design can be customized according to specific requirements

Noted: Logo (Customized available)

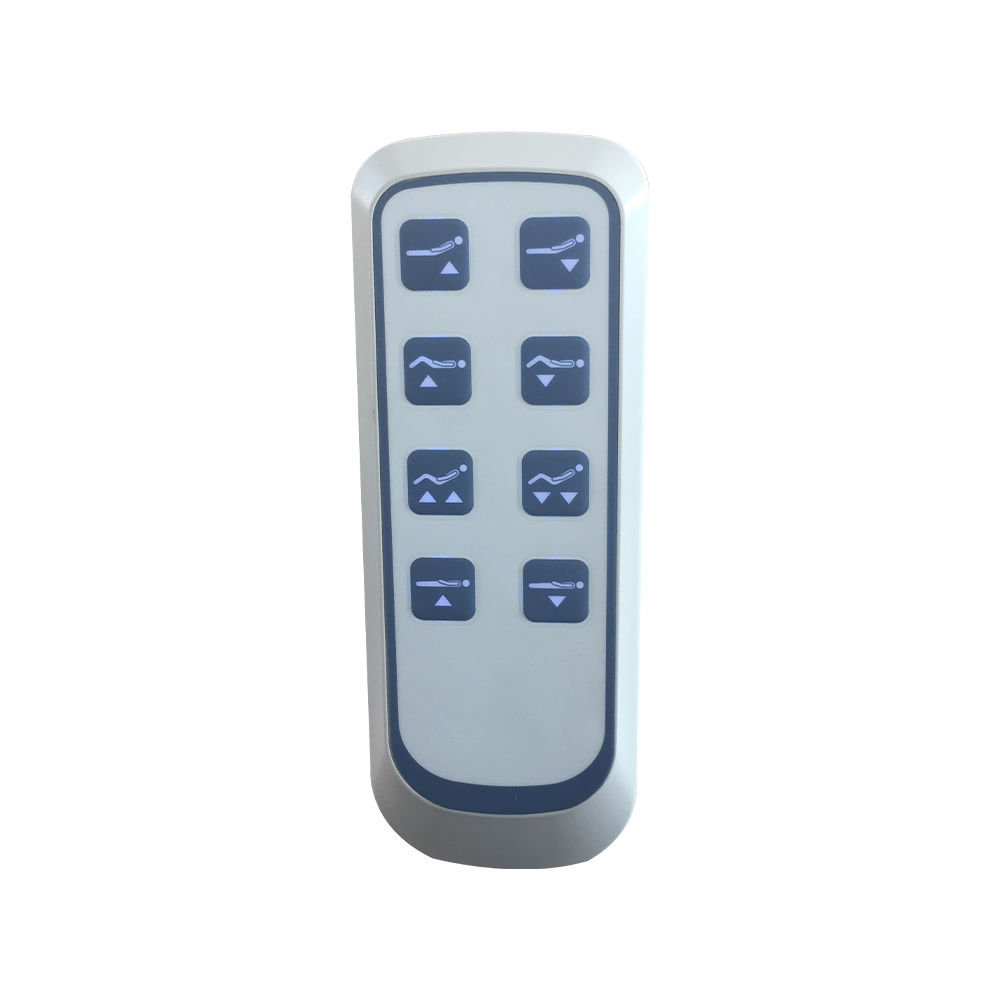

JCH35V2

JIECANG

Waterproof rating: IPX4

Numbers of buttons:up to 8

Touch switch ensures long life.

Drive up to 4 actuators synchronized

Color:gray

Controller supporting: all general controllers of Jiecang / non relay system

Easy operation with both hands

Panel color and style can be customized

Noted: Logo (Customized available)

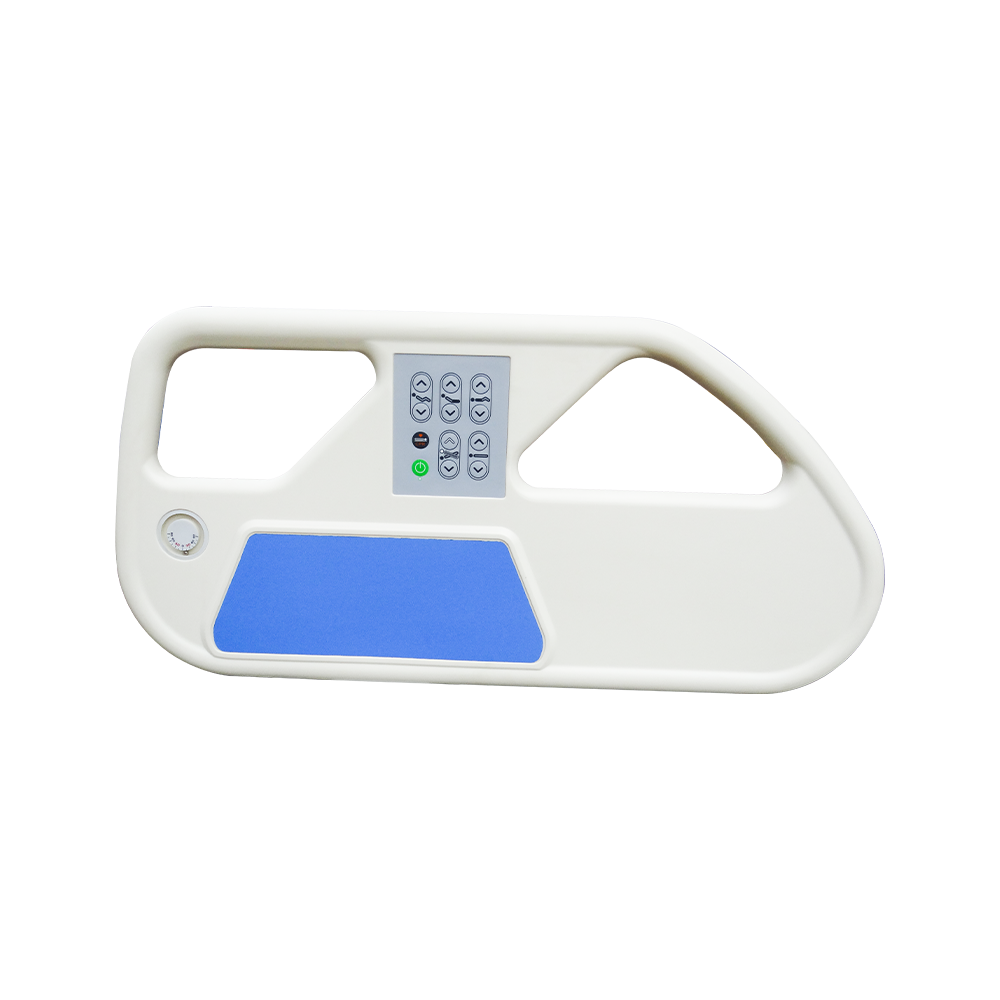

JCHN35E1

JIECANG

Waterproof rating:Max. IPX6

Button amount: Max.26 buttons

5 actuators move synchronized

Color: gray

Control box: suit with Jiecang control box

Existing conventional configuration: conventional four-action five-function with CPR; Jiecang three-column nursing control

Plug and cable:optional(standard:9pin and 14 pin 4 meter coiled cable)

The color and style of the panel could be designed

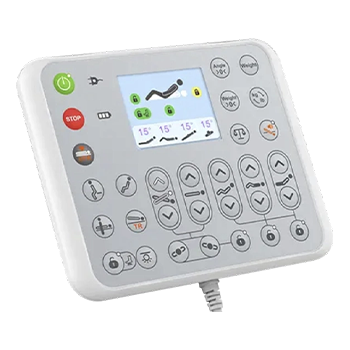

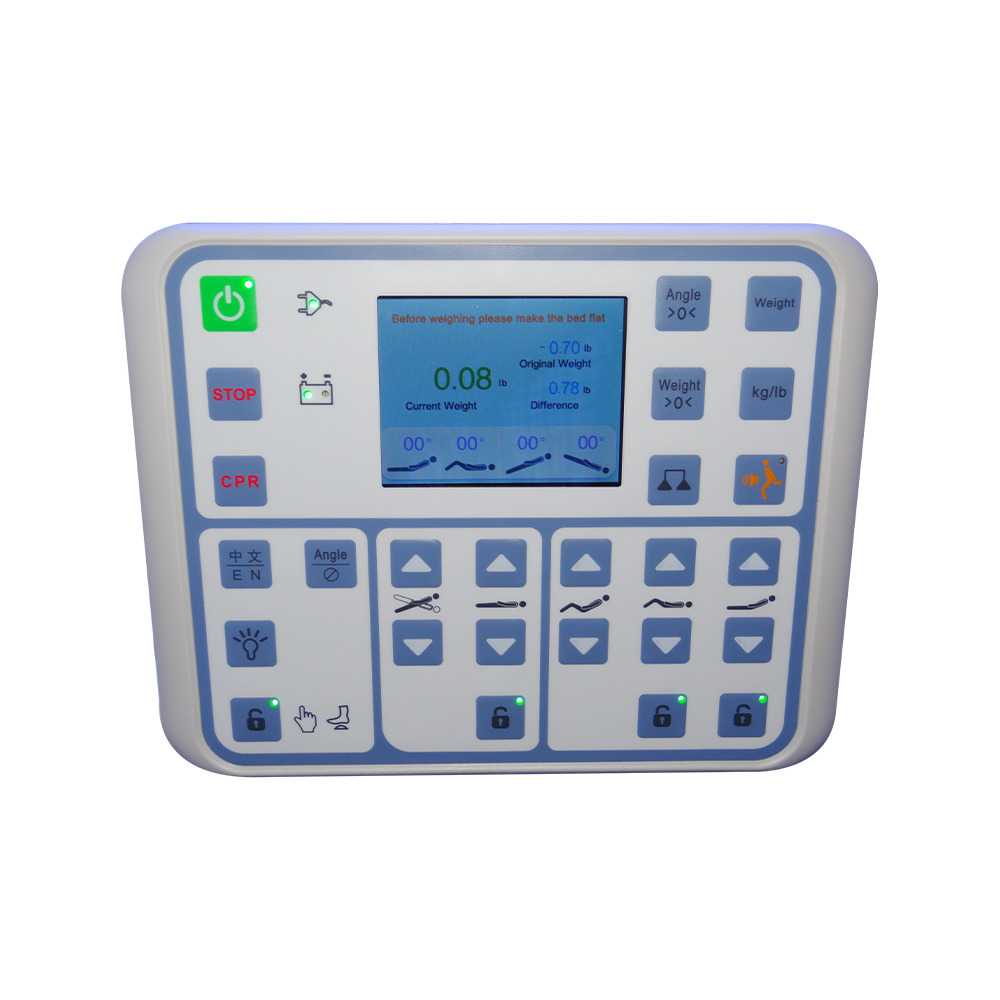

JCHN35H

JIECANG

Waterproof rating:Max. IPX6

Drive up to 5 actuators simultaneously

Color：Gray

Supporting control box: matching with JIECANG control box

With 3.5-inch TFT color display, which can display bed data and the corresponding action of the buttons and the angle, etc

With power display and battery display

With lock key, locking/unlocking operation button one by one

Security design, , the operation button will be locked automatically after no button operation in 60S

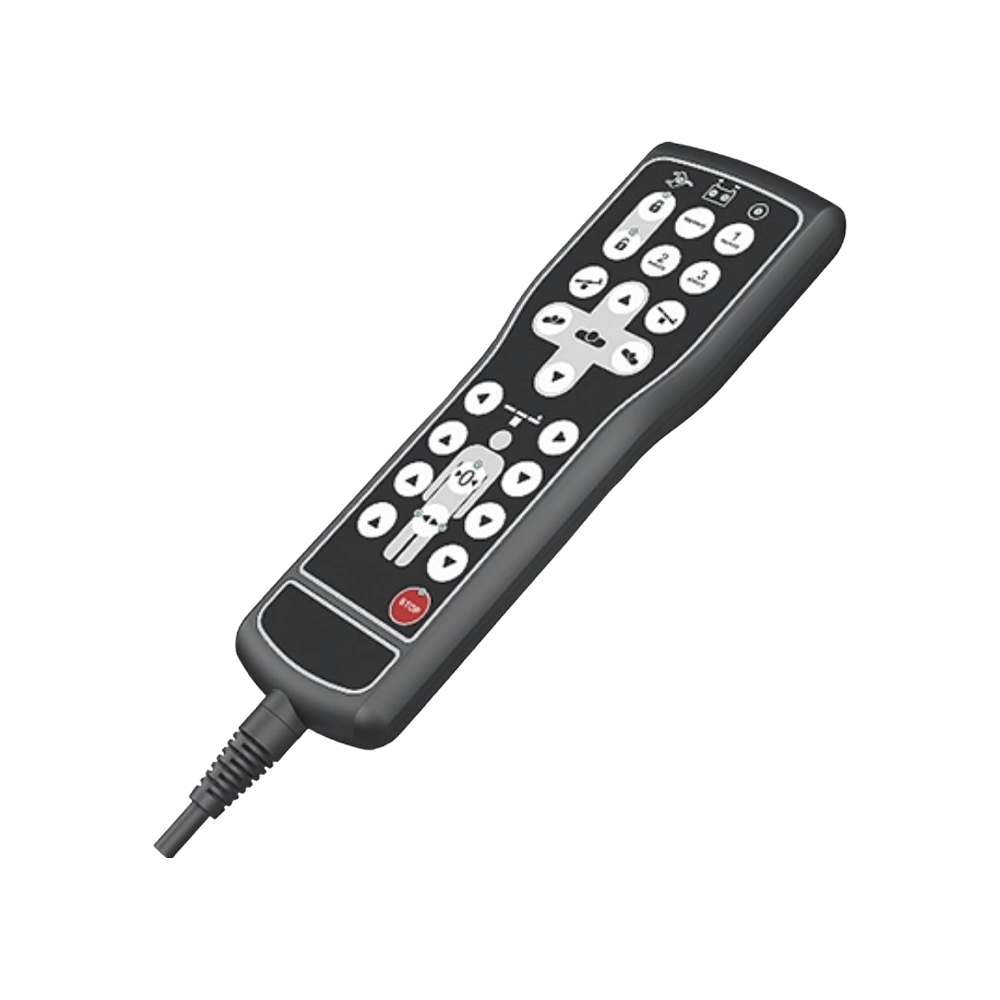

JCH35A8

JIECANG

Waterproof rating:Max. IPX6

Button amount: Max.29 buttons

Key form: touch switch

Drive up to 10 actuators at the same time

Colour: Black

control box supporting: all conventional control boxs of Jiecang

Optional function: electronic lock

Optional accessories: bracket

Optional hook: metal hook / plastic hook

Panel color and style can be customized

Noted: Logo (Customized available)

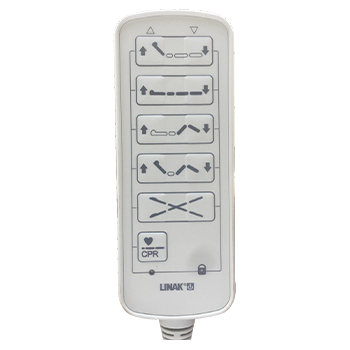

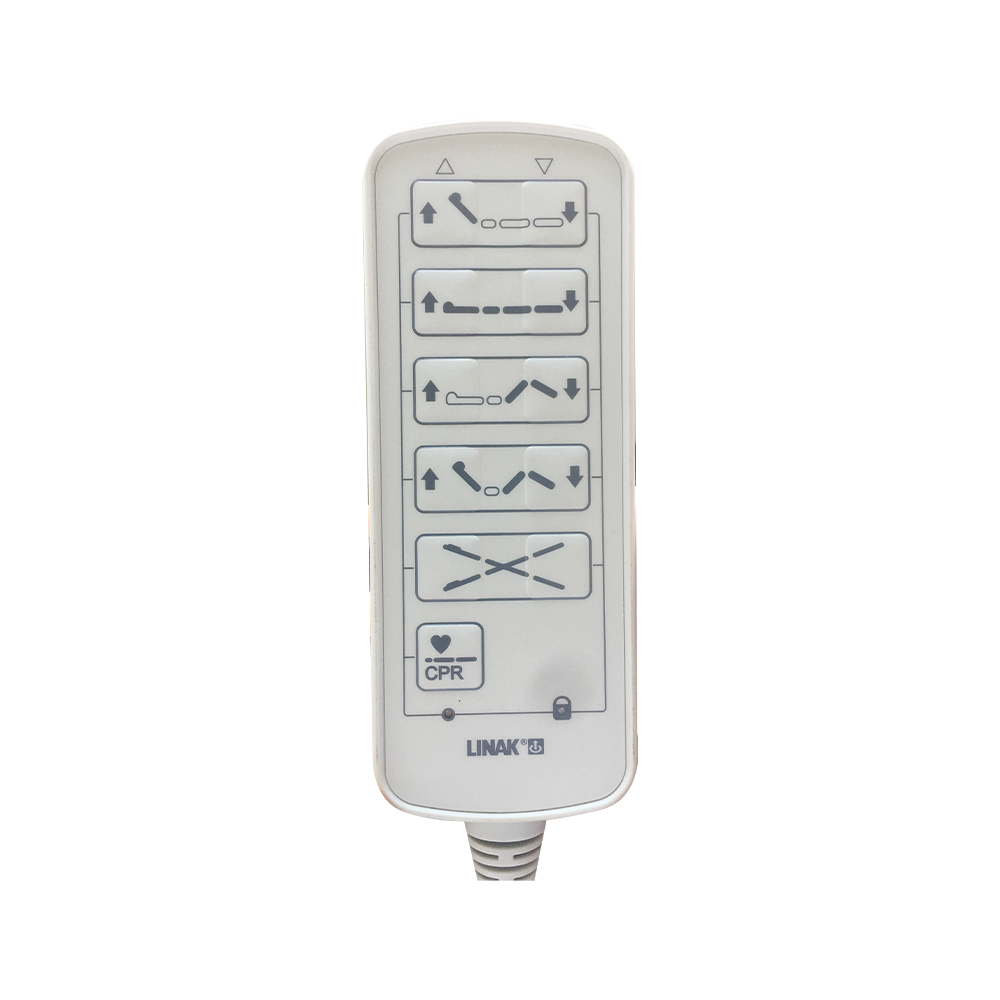

KH30

LINAK

Simulation board, compatible with multiple LINAK control systems

-10 standard buttons, expandable to 12 buttons

-Expandable mechanical lock

-Expandable with 8 indicator lights

Noted: Logo (Customized available)

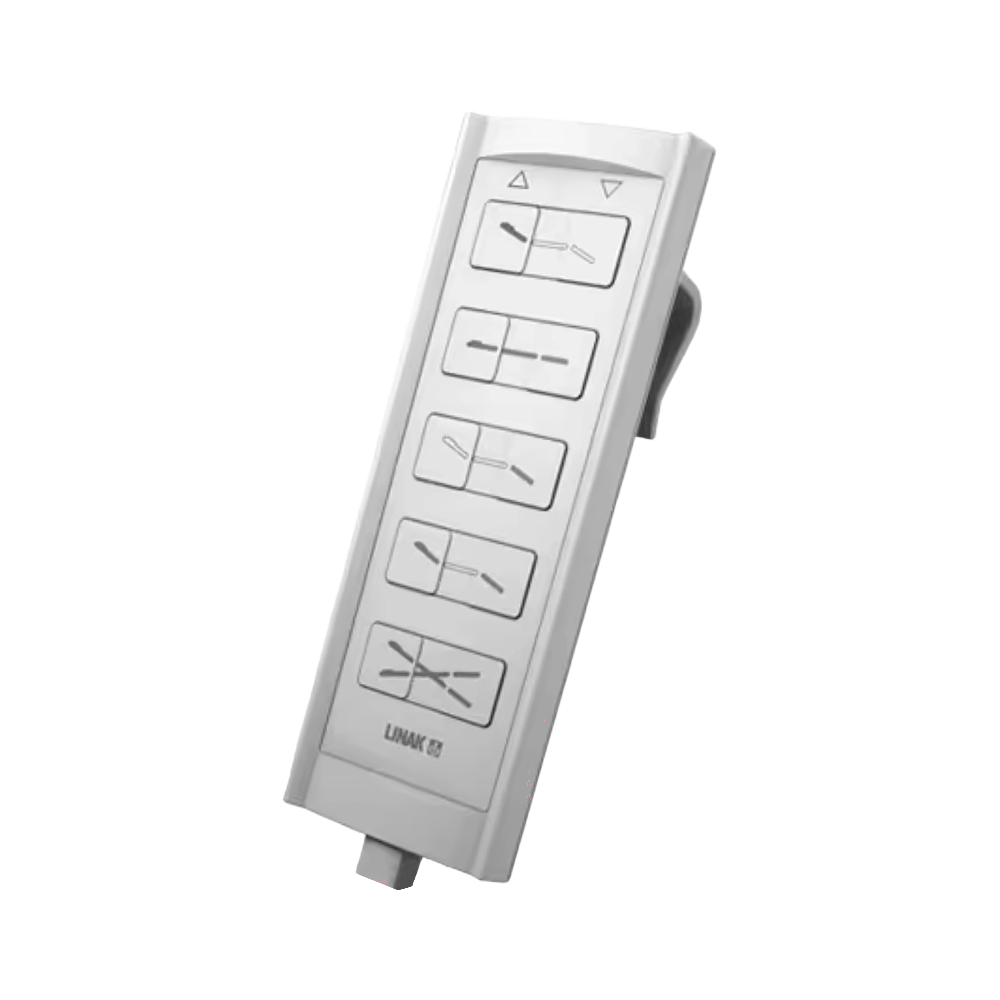

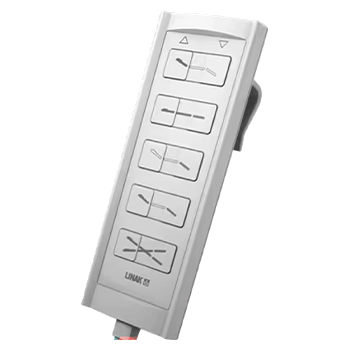

HB70

LINAK

HB70 provides synchronous motion for multiple push rods and can be used for memory options.

The HB70 controller can be used for both Openbus and handheld devices ™  It can also be used for simulation systems and is available in three colors: black, dark gray, and light gray.

LINAK offers a standard version HB70 with a protection level of IPX6 and a cleaning resistant option with a protection level of IPX6. This controller has options for memory and synchronized movement.

The designed manual controller HB70 can be operated and used with most LINAK control boxes.

Noted: Logo (Customized available)

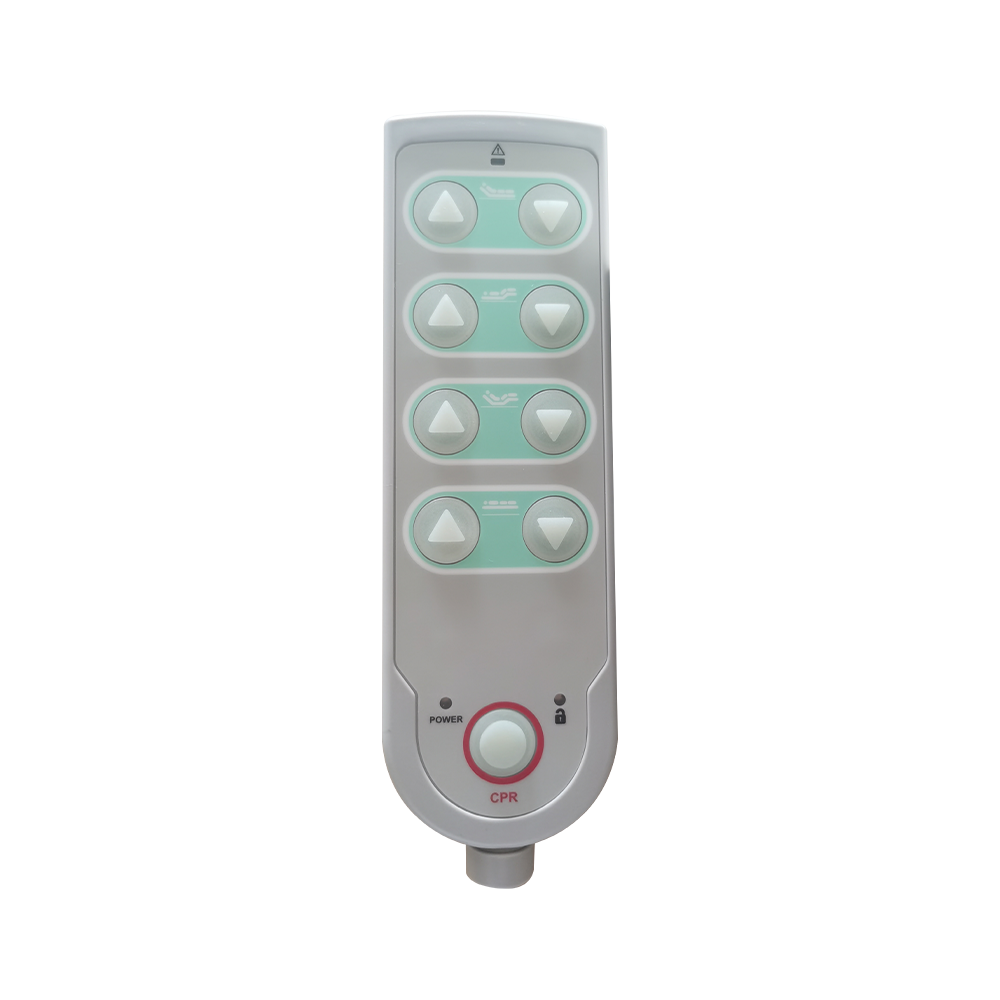

Nocturne

DEWERT

Supports driving 1-4 drivers

Using silicone buttons, comfortable to touch, bright colors, and beautiful appearance

Surface sticker color, function supports customization

The buttons can be either fluorescent or backlit, making night operation effortless

Equipped with a mechanical lock to ensure safe operation

Noted: Logo (Customized available)

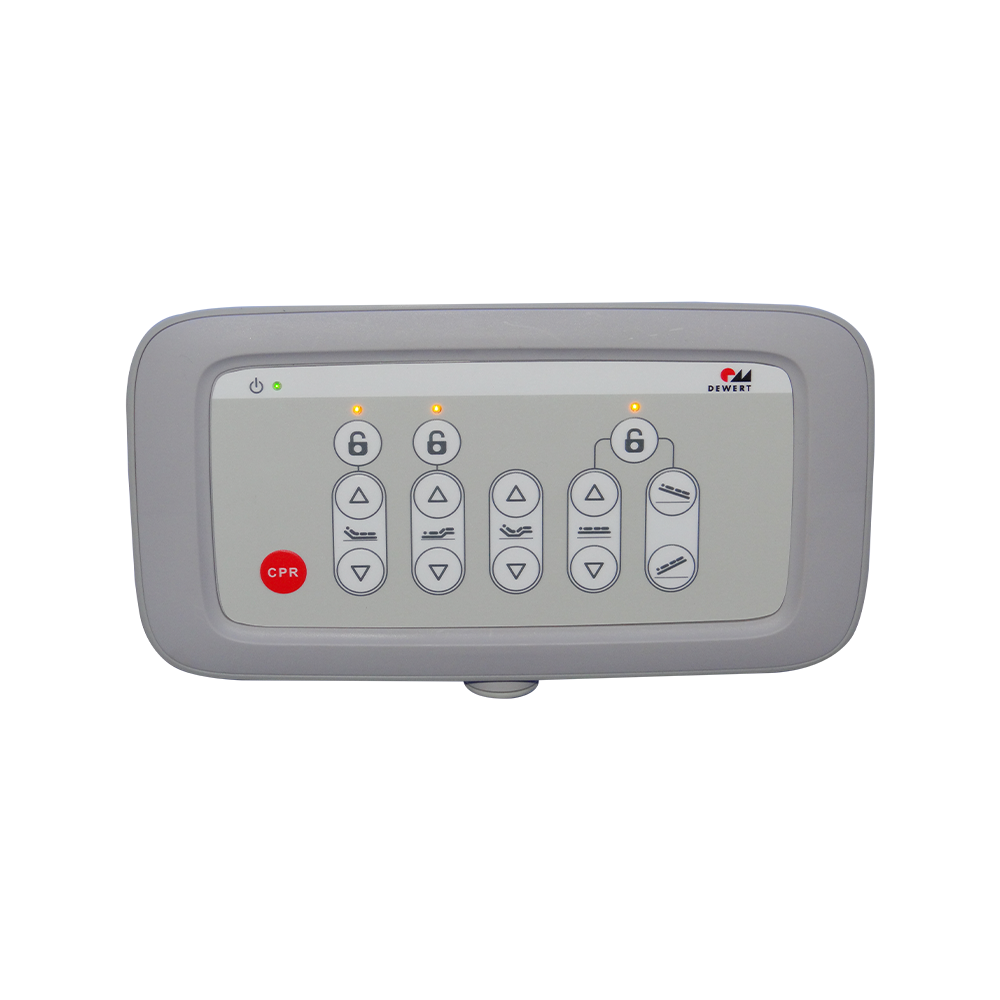

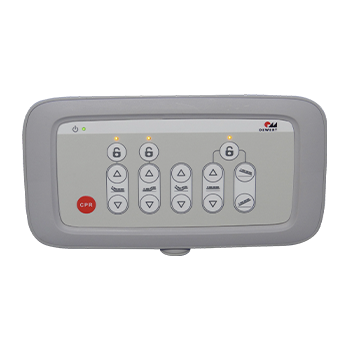

IPROXX AC

DEWERT

Standard configurations:

Indicators Keys Locking Installation Customizable parts 7 14 Independent function electronic lock Hook Foil pattern

Noted: Logo (Customized available)

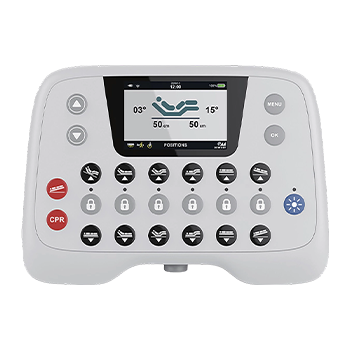

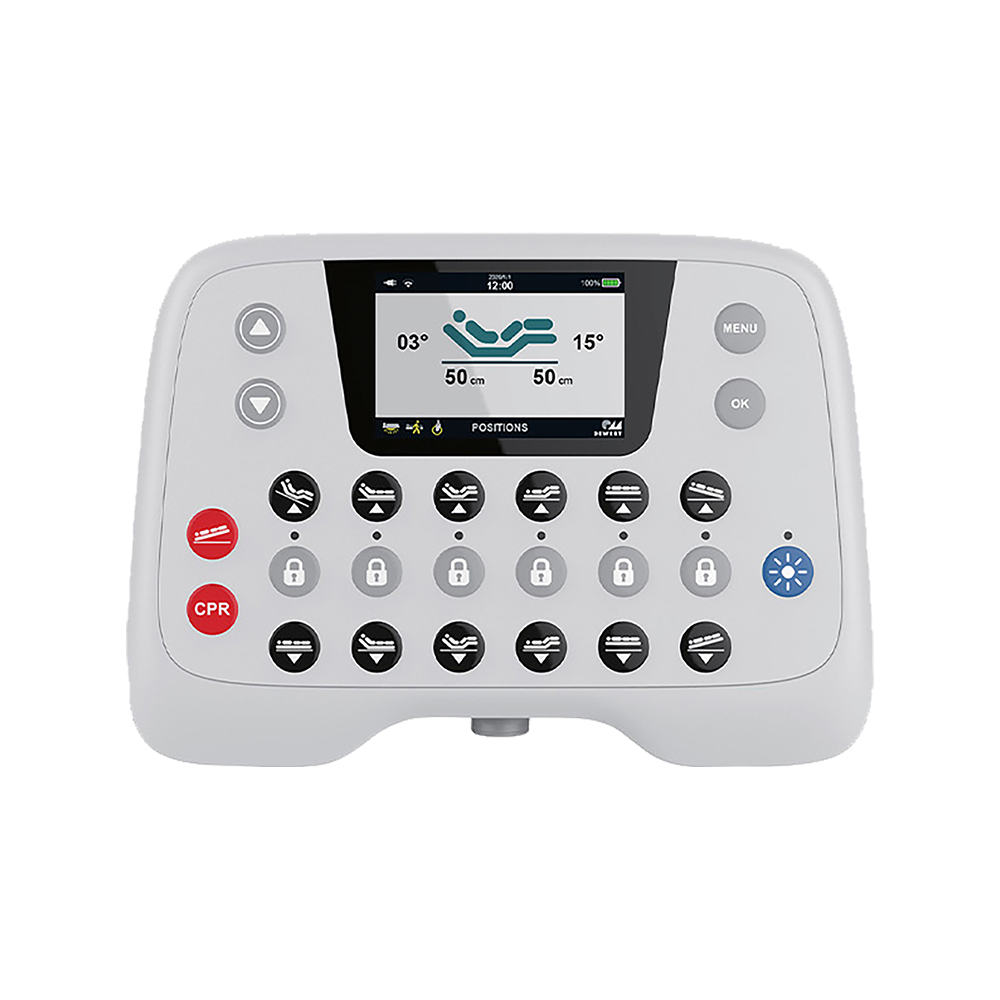

IPROXX AC Display

Maximum number of supported keys: 25

Waterproof rating:IPX4

Operating temperature: 0 ° C to+40 ° C

Supports driving 1-5 drivers

Equipped with a 3.5-inch LED display screen, it can display bed and patient information, and supports multilingual customization

There is a button independent lock, easy to operate, and safe

Equipped with battery level indicator light, operation indicator light, charging indicator light, and mains power indicator light

Face sticker color, pattern, function, etc. support customization.

Service life

3 years
